Grid layout not scaled with screen resolution

Question

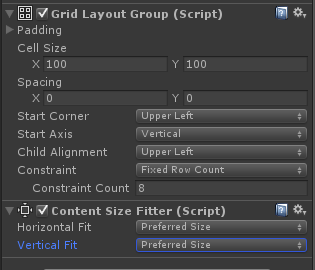

I have one canvas and canvas have a child panel which is actually scroll view panel contains another child which has component grid layout. Canvas's UI scale mode is scale with screen size. But my Grid layout not fit to screen width, height is perfect.

![alt text ][1]

Answer 1

Answer by mm-dacampo · Feb 03, 2016 at 03:39 PM

In case of dynamically updated content, use:

 myItem.transform.SetParent(grid.transform, false);

The second argument (worldPositionStays) will probably fix your issue...

Otherwise think about using LayoutElement (http://docs.unity3d.com/Manual/script-LayoutElement.html) for your items.

Add comment · Show 2 · Share

JamesHartley · Mar 19, 2017 at 11:52 PM 0

Share

This worked for me, thank you.

sadeghpoor · Jan 18, 2021 at 01:15 PM 0

Share

thanks alot , this solved my problem

Answer 2

Answer by smkgamespresent · Apr 20 at 06:36 AM

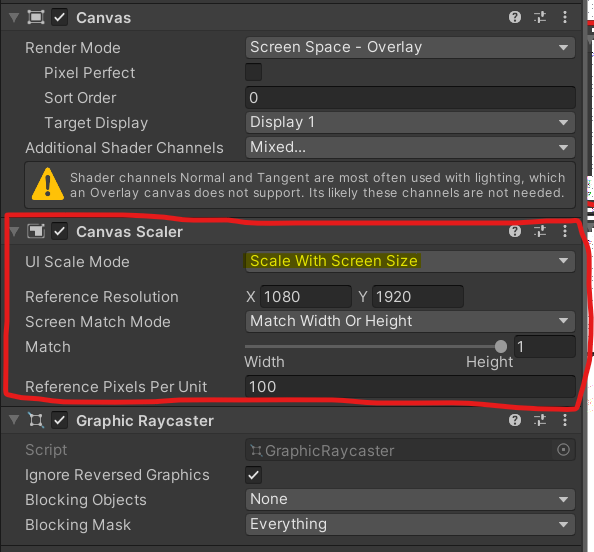

Canvas's UI scale mode should be scale with screen size try to change the resolution to have the better result alt text

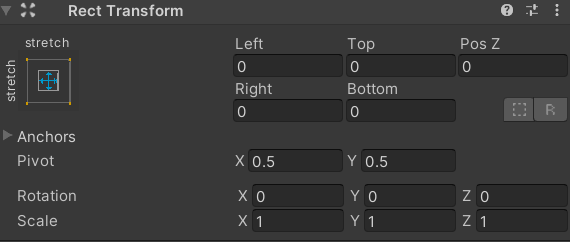

add the stretch mode to resize with screen size

alt text



Add comment · Share
